Raw sea water pump Major repair kit for Westerbeke 48080
| Model: | 3020-0303 |
| Place of Origin: | Zhejiang,China (Mainland) |
| Brand Name: | Nautilus |
| WESTERBEKE: | 48080 |
Product Description
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 119.0 USD | Production Capacity: | 10000 |
| Trade Term: | FOB,CFR,CIF,DAT,FAS,DDP,DAP,CIP,CPT,FCA,EXW | Packing: | BOX |
| Payment Terms: | Paypal, L/C, D/P, D/A, T/T, WU, Money Gram | Delivery Date: | 3 |
| Min. Order: | 3 Piece/Pieces | ||
| Means of Transport: | Ocean, Air, Land | ||
This is a new aftermarket part!
Raw sea water pump Major repair kit for Westerbeke 48080
New Raw Sea Water Pump Major Repair kit Without the shaft for many Westerbeke Marine Generators with pump # 48080
Complete aftermarket kit with detailed instructions and special tools to make the installation of the shaft and mechanical seal easy. All you need is a good housing and shaft.
Important Note:
Fits pumps with the round cover made after March 2004. If your pump has
a irregular cover and uses a gasket it has a different shaft and will not fit.
It also will NOT fit the aftermarket pump made by JMP, this pump can be identified by the cam being non replacable. There will be no screw seen between the two hose fittings.

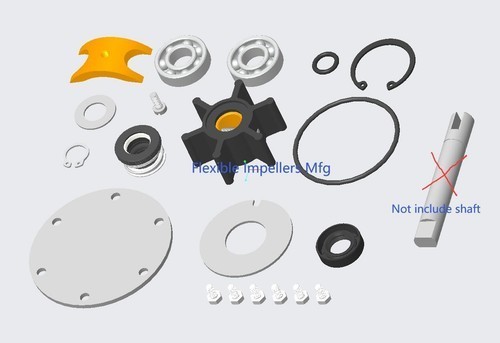

Includes:
O-ring , cover , 48359 , 048359
O-ring , Slinger , 33041 , 033041
Wear Plate , 49171 , 049171
Retaining ring , 33044 , 033044
Retaining ring , 33045 . 033045
Lip Seal , 49169 , 049169
Mechanical Seal , 48254 , 048254
Washer , 48253 , 048253
Bearing 34464 , 024464
Impeller , 48500 , 048500
Cam screw , 46662 , 046662
Cam screw washer , 33037 , 033037
Cam , 34458 , 034458
Cover screw , 34463 , 034463
Cover , 49170 ,049170
Similar to westerbeke kit 49000 , 049000 but without the shaft.
Fits Westerbeke Models: With the round cover , pump made after March 2004.
4.0 BCD(60Hz)
4.4 BCD(60Hz)
4.4 WMD (60Hz) / 3.3 WMD (50Hz)
5.0 BCD (60Hz) /4.0 BCD (50Hz)
5.0 BCDA (60Hz) / 4.0 BCDA (50Hz)
5.0 BCDB (60Hz) / 4.0 BCDB (50Hz)
6.0 BCD (60Hz ) /4.5 BCD (50Hz)
7.6 BTD (60Hz) / 5.7 BTD (50Hz)
7.7 WMD (60Hz) / 5.8 WMD (50Hz)
8.0 BTD (60Hz) / 6.0 BTD (50Hz)
8.0 BTDA (60Hz) / 6.0 BTDA (50Hz)
8.0 WMD (60Hz) / 6.0 WMD (50Hz)
10.0 BTD (60Hz) / 7.5 BTD (50Hz)
10.0 BTDA (60Hz) / 7.5 BTDA (50Hz)
11.0 BTD (60Hz) / 8.3 BTD (50Hz)
11.0 WMD (60Hz) / 8.3 WMD (50Hz)
12.5 BTD (60Hz) / 9.4 BTD (50Hz)
12.5 BTDA (60Hz) / 9.4 BTDA (50Hz)
12.5 BTDB (60Hz) / 9.4 BTDB (50Hz)
12.5 WMD (60Hz) / 9.4 WMD (50Hz)
15.0 BTDC (60Hz) / 12.0 BTDC (50Hz)
Impeller Specifications:
Width: 7/8" (22mm)
Diameter: 2" (50.8mm)
Shaft: .472" (12mm)
Drive: Slot (pin)
Material: Neoprene
Silhouette: 6 blades
