Water Pump Major Repair Kit With Shaft Volvo Penta 3593655 Johnson10-24752-01

This is a new aftermarket part!

New Sea Water Pump Impeller Repair Service kit with shaft assembly. Compete kit, all new internal parts, just reuse your bronze housing.

Replaces shaft kit 21951418, wear kit 21951370, impeller kit 22222936

Volvo Pumps:  3580945 , 3593655

Johnson Pump: 10-24465-01 , 10-24752-01

Volvo Penta Models with the above listed Pumps:

MD2030 , MD2030A , MD2030B , MD2030C , MD2030D , MD2030-A , MD2030-B , MD2030-C , MD2030-D

MD2040 , MD2040A , MD2040B , MD2040C , MD2040D , MD2040-A , MD2040-B , MD2040-C , MD2040-D

D1-30 ,  D1-30A , D1-30B , D1-30F

D2-40 , D2-40A , D2-40B , D2-40F

Volvo F4B series with 1/2" shaft at impeller end, 12mm at seals and bearings.

Includes Johnson and aftermarket parts.

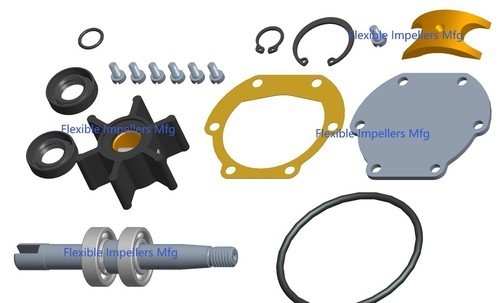

Includes:

1 ea Gasket

1 ea Shaft

1 ea Spacer

2 ea  Bearings

1 ea End Cover

1 ea Impeller

2 ea Seal (water seal use stainless steel frame)

6 ea SS Screws

2 ea Retaining Ring

1 ea Seal Spacer

1 ea Cam

1 ea Cam Screw

1 ea Cam Screw Washer

2 ea  O-ring

1 ea  Pump Print

1 ea Instruction Sheet

Impeller Specifications:

Width:        7/8"  (22mm)

Diameter:    2"  (50.8mm)

Shaft:         1/2"     (12.7mm)

Drive:         Slot  (pin)

Material:     Neoprene

Silhouette: 6 blades

Weight:350g/Kit
